Jual Swing Gate - Jual Swing Barrier

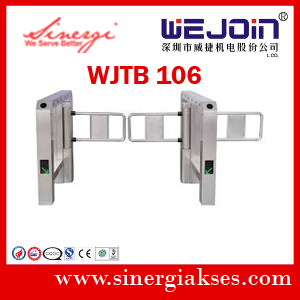

Product Detail : Swing Gate WJTB 106
Jual Swing Gate WJTB 106
Spesifikasi Swing Gate WJTB 106
Functions & Features (Full-automatic Swing Barrier)
1. Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10. Each machine can be set by Physical Address (Optional).
11. Equipped with free control software for man-machine interface & control command SDK.

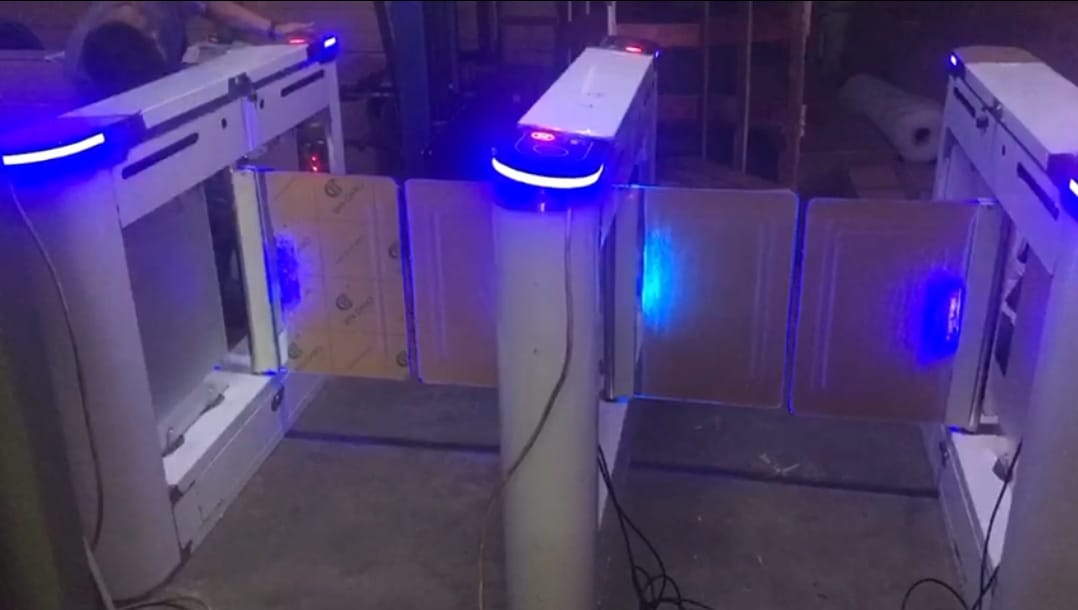

Product Detail : Swing Gate ISG
Jual Swing Gate ISG
Spesifikasi Swing Gate ISG
Functions & Features (Full-automatic Swing Barrier)
1. Working Volt : AC 220V, 50 Hz
2. Drive Motor DC 24 V/40W
3. Passing Speed : 30 person/min
4. Input Interface 12 Volt
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10. Each machine can be set by Physical Address (Optional).
11. Equipped with free control software for man-machine interface & control command SDK.
Pemasangan Swing Gate At PT.SMI SERANG
Video Project Swing Gate At PT.SMI SERANG

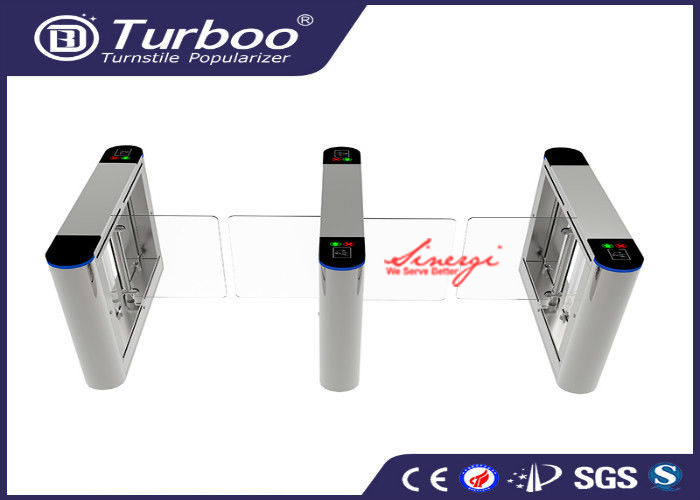

Product Detail : Swing Gate TURBO
Jual Swing Gate Turbo
Swing Gate Turbo / Swing Barrier Gate Sistem Pembaca Kartu RFID Access Control System Automatic Entrance Gate Dilengkapi dengan jendela baca kartu standar, bisa terhubung dengan multi card-readdevice, dapat dihubungkan dengan tombol eksternal atau remote control. mencapai satu atau dua arah ke arah sesuai keinginan.
Detail Spesifikasi Swing Gate Turbo
- Full Automatic
- Dimensi of Housing 1400 x 185 x 1020 mm
- Material of Housing : 304 Stainless Steel
- Thicknes of Housing : 1.50mm
- Pass rate 35 min / second
- Power Frekuensi 50 hz
- Rate Power 50 Watt
- steel cut by lases
- Infrared EKS protection
- The least welding portion polished properly
- Material Of Housing Stanless
- Weight 100 Kg
- Working Environment : Indoor / Outdoor ( Shelter )
- Working Temperature : -25 C - 55 C
